blaz ctf 2023

Introduction#

Challenges can be found here : https://github.com/fuzzland/blazctf-2023/tree/main/challenges

Challenges I solved :#

Jambo (EVM, REVERSE) (33 solves)
Maze (YUL) (24 solves)
Ghost (EVM, PWN) (13 solves)

DeFiHackLabs#

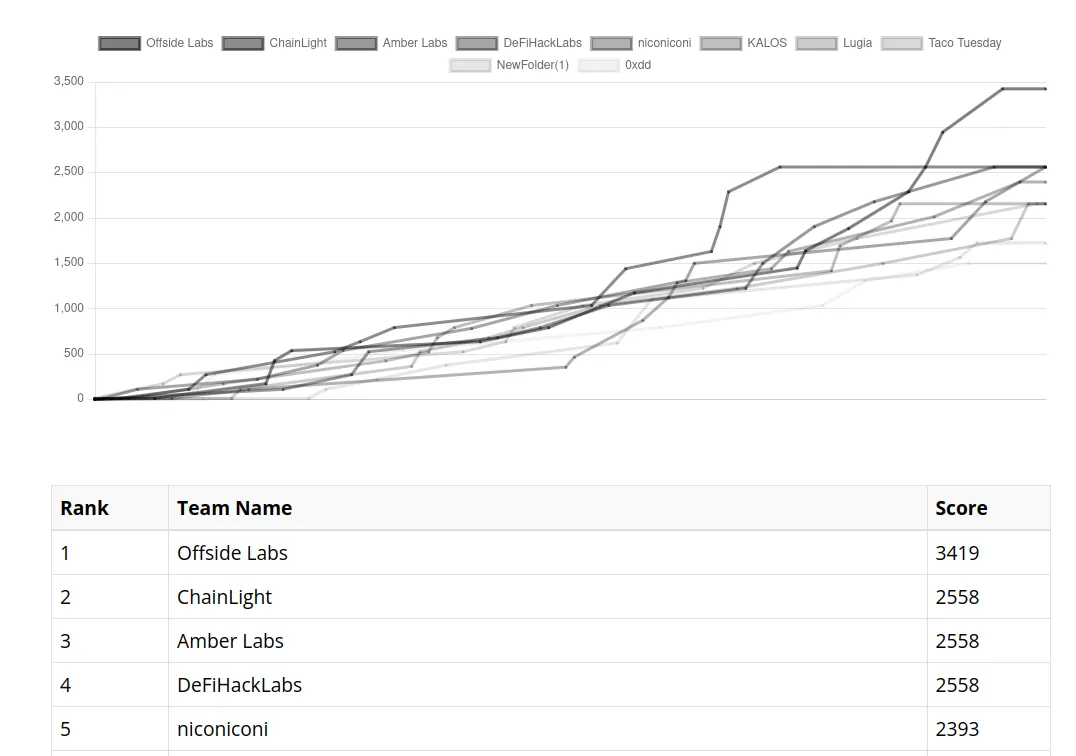

I was lucky enough to play this ctf with the DeFiHackLabs team (Rank 4).

Although some of my teammate solved theses challenges faster than me, and I faced difficulties with the Missing challenge, I decided to continue working on them to maintain my mental well-being :)

Alt text

JAMBO#

EVM,PWN / 33 solves / 155 pts

Author: publicqi (@publicqi)

Challenge Background#

Tony went crazy. No one knows what he has deployed on Ethereum.

The player’s challenge is to bring the balance of this enigmatic contract to zero. The only clue available is the contract’s bytecode, necessitating a reverse engineering approach.

// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.21;

interface Jambo {
    function answer(bytes memory _answer) external payable;
    function start(uint256 qid, bytes32 _answer) external payable;
    function revokeOwnership() external;
}

contract Challenge {
    address public immutable target;

    constructor() payable {
        bytes memory bytecode = hex"60806040526200000e62000157565b6200001862000027565b610a24620001ad8239610a2481f35b5f604051905090565b5f73ffffffffffffffffffffffffffffffffffffffff82169050919050565b5f6200005b8262000030565b9050919050565b5f8160601b9050919050565b5f6200007a8262000062565b9050919050565b5f6200008d826200006e565b9050919050565b620000a9620000a3826200004f565b62000081565b82525050565b5f620000bc828462000094565b60148201915081905092915050565b5f601f19601f8301169050919050565b7f4e487b71000000000000000000000000000000000000000000000000000000005f52604160045260245ffd5b6200011382620000cb565b810181811067ffffffffffffffff82111715620001355762000134620000db565b5b80604052505050565b5f819050602082019050919050565b5f81519050919050565b336200016262000027565b60208101620001728382620000af565b6020830181038352620001888382038462000108565b62000193836200014d565b6200019e846200013e565b20806001815550505050505056fe60806040526004361061007b576100165f35610088565b80632b968958811461004857632f48494781146100555763b06a5c5281146100625763f5b938e2811461006f57610078565b6100506100c7565b610078565b61005d610287565b610078565b61006a61033e565b610078565b610077610413565b5b50505b61008361043f565b6109ed565b5f8160e01c9050919050565b5f604051905090565b5f80fd5b5f80fd5b5f81830312156100b8576100b76100a1565b5b5050565b5f8082019050919050565b34156100d6576100d561009d565b5b6100e13660046100a5565b6100e961052e565b6100f1610094565b6100fa816100bc565b81810382f35b5f80fd5b5f80fd5b5f80fd5b5f601f19601f8301169050919050565b7f4e487b71000000000000000000000000000000000000000000000000000000005f52604160045260245ffd5b6101528261010c565b810181811067ffffffffffffffff821117156101715761017061011c565b5b80604052505050565b5f610183610094565b905061018f8282610149565b919050565b5f67ffffffffffffffff8211156101ae576101ad61011c565b5b6101b78261010c565b9050602081019050919050565b828183375f83830152505050565b5f6101e46101df84610194565b61017a565b905082815260208101848484011115610200576101ff610108565b5b61020b8482856101c4565b509392505050565b5f82601f83011261022757610226610104565b5b81356102378482602086016101d2565b91505092915050565b5f60208284031215610255576102546100a1565b5b5f82013567ffffffffffffffff81111561027257610271610100565b5b61027e84828501610213565b91505092915050565b610292366004610240565b61029b816106c7565b6102a3610094565b6102ac816100bc565b81810382f35b5f82821c905092915050565b5f819050919050565b5f6102dd6102d883600886026102b2565b6102be565b905092915050565b5f6102f18383546102c7565b905092915050565b5f805f61030681836102e5565b9250505090565b5f819050919050565b61031f8161030d565b82525050565b5f6020820190506103385f830184610316565b92915050565b341561034d5761034c61009d565b5b6103583660046100a5565b6103606102f9565b610368610094565b6103728282610325565b81810382f35b6103818161030d565b811461038b575f80fd5b50565b5f8135905061039c81610378565b92915050565b5f819050919050565b6103b4816103a2565b81146103be575f80fd5b50565b5f813590506103cf816103ab565b92915050565b5f80604083850312156103eb576103ea6100a1565b5b5f6103f88582860161038e565b9250506020610409858286016103c1565b9150509250929050565b61041e3660046103d5565b61042881836109df565b610430610094565b610439816100bc565b81810382f35b5f80fd5b5f73ffffffffffffffffffffffffffffffffffffffff82169050919050565b5f61046c82610443565b9050919050565b5f8160601b9050919050565b5f61048982610473565b9050919050565b5f61049a8261047f565b9050919050565b6104b26104ad82610462565b610490565b82525050565b5f6104c382846104a1565b60148201915081905092915050565b5f819050602082019050919050565b5f81519050919050565b5f90565b5f819050919050565b5f819050919050565b5f61051b610516610511846104ef565b6104f8565b61030d565b9050919050565b8061052b575f80fd5b50565b33610537610094565b6020810161054583826104b8565b602083018103835261055983820384610149565b610562836104e1565b61056b846104d2565b20805f6105766104eb565b809150825491508180600161058a81610501565b6105938361030d565b1461059d81610522565b5f8755505050505050505050505050565b5f815f1c9050919050565b5f819050919050565b5f6105d46105cf836105ae565b6105b9565b9050919050565b5f6105e682546105c2565b9050919050565b5f819050919050565b5f61061061060b610606846105ed565b6104f8565b61030d565b9050919050565b5f61063161062c61062784610443565b6104f8565b610443565b9050919050565b5f61064282610617565b9050919050565b5f61065382610638565b9050919050565b5f61066482610617565b9050919050565b5f6106758261065a565b9050919050565b5f6106868261065a565b9050919050565b610695610094565b3d5f823e3d81fd5b5f819050919050565b5f6106c06106bb6106b68461069d565b6104f8565b61030d565b9050919050565b6106d160016105db565b8082806106dd816104e1565b6106e6826104d2565b206106f0816103a2565b6106f9856103a2565b148080156107255734670de0b6b3a7640000610714816105f6565b61071d8361030d565b118093505050505b80156107aa573361073581610649565b61073e8161066b565b306107488161067c565b80315f81610756576108fc90505b5f805f80858986f18061076c5761076b61068d565b5b5f6107756104eb565b809150333b915081805f610788816106a6565b6107918361030d565b1461079b81610522565b50505050505050505050505050505b5050505050505050565b6107bc610094565b3381526020812060378160f81c036107d65761ffff811656005b50506107e282826108fe565b5050565b5f815f1b9050919050565b5f7fffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff61081c846107e6565b9350801983169250808416831791505092915050565b5f61084c6108476108428461030d565b6104f8565b61030d565b9050919050565b5f819050919050565b61086582610832565b61087861087182610853565b83546107f1565b8255505050565b5f819050919050565b610899610894826103a2565b61087f565b82525050565b5f6108aa8284610888565b60208201915081905092915050565b5f6108c3826103a2565b9050919050565b5f6108d4826105ae565b9050919050565b6108e4826108b9565b6108f76108f0826108ca565b83546107f1565b8255505050565b808061090a815f61085c565b808480610915610094565b60208101610923838261089f565b602083018103835261093783820384610149565b610940836104e1565b610949846104d2565b206109558160016108db565b803361095f610094565b6020810161096d83826104b8565b602083018103835261098183820384610149565b61098a836104e1565b610993846104d2565b20805f61099e6104eb565b80915082549150818060016109b281610501565b6109bb8361030d565b146109c581610522565b505050505050505050505050505050505050505050505050565b6109e982826107b4565b5050565bfea2646970667358225b5f5f5f5f3361fffff400fa76a6d904926b7e33347e66ac48cec08478ce15f7e22464736f6c63430008160033";
        uint256 value = address(this).balance;
        address addr;

        assembly {
            addr := create(value, add(bytecode, 0x20), mload(bytecode))
            if iszero(addr) { revert(0, 0) }
        }
        target = addr;

        Jambo(target).start(0x1337, bytes32(0x66757a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a6c616e64));
        Jambo(target).revokeOwnership();
    }

    function isSolved() public view returns (bool) {
        return address(target).balance == 0;
    }
}

Challenge Contract Mechanics#

Participants interact with a contract named Challenge. This contract, upon deployment, performs the following actions:

Deploys a new contract using a predefined bytecode and assigns its address to a variable called target.
Utilizes the Jambo interface to invoke two specific functions on the target contract:
1. start function with preset parameters, initializing certain operations.
2. revokeOwnership function, altering the ownership state of the target.

Jambo(target).start(0x1337, bytes32(0x66757a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a6c616e64));

Jambo(target).revokeOwnership();

Approach to Solving#

Decompilation of Target Contract:
- Utilize tools like Dehaub or Panoramix for reverse engineering the target’s bytecode.
- Be cautious, as decompilers can often produce inaccuracies, especially in CTF contexts.
- The following link provides the code as decompiled by Dehaub:

// Decompiled by library.dedaub.com
// 2023.12.02 05:59 UTC
// Compiled using the solidity compiler version 0.8.22

// Data structures and variables inferred from the use of storage instructions
uint256 _questionId; // STORAGE[0x0] 0x1337
uint256 stor_1; // STORAGE[0x1] keccak256(0x66757a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a6c616e64)



function 0x149(bytes varg0, uint256 varg1) private { // SET FMP
    v0 = varg0 + (varg1 + 31 & ~0x1f);
    require(!((v0 > uint64.max) | (v0 < varg0)), Panic(65)); // failed memory allocation (too much memory)
    MEM[64] = v0;
    return ;
}

function revokeOwnership() public nonPayable {
    0xa5(4, msg.data.length);
    0x149(MEM[64], 52);
    v0 = 0x501(1);
    require(STORAGE[keccak256(msg.sender)] == v0);
    STORAGE[keccak256(msg.sender)] = 0;
    return ;
}

function 0x501(uint256 varg0) private {
    return varg0;
}

function 0x2f484947(bytes varg0) public payable {
    //require(msg.data.length - 4 >= 32);
    require(varg0 <= uint64.max);
    require(4 + varg0 + 31 < msg.data.length);
    //require(varg0.length <= uint64.max, Panic(65)); // failed memory allocation (too much memory)
    v0 = new bytes[](varg0.length);
    0x149(v0, (varg0.length + 31 & ~0x1f) + 32); //@audit set fmp
    //require(varg0.data + varg0.length <= msg.data.length); // ????
    CALLDATACOPY(v0.data, varg0.data, varg0.length); //@audit-info put varg0 in memory
    //v0[varg0.length] = 0; //out of length, more like delimiting the array
    v1 = v0.length;
    v2 = v0.data;
    v3 = v4 = stor_1 == keccak256(v0); // == spelhash
    if (v4) {
        v3 = msg.value > 10 ** 18; //need > 1 ether
    }
    if (v3) {
        v5 = v6 = msg.sender;
        v7 = this;
        v8 = v9 = 0;
        if (!v7.balance) { // Decompilatin error
            v8 = 2300;
        }
        v11 = v6.call().value(v7.balance).gas(v8); //@audit here
        require(v11, MEM[64], RETURNDATASIZE()); //require success
        require(msg.sender.code.size == 0); // require msg.sender == not SC
    }
    return ;
}

function 0x617(address varg0) private {
    return varg0;
}

function questionId() public nonPayable {
    0xa5(4, msg.data.length);
    return _questionId;
}

function start(uint256 tokenId, bytes32 spellHash) public payable {
    require(msg.data.length - 4 >= 64);
    //require(tokenId == tokenId);
    //require(spellHash == spellHash);
    if ((keccak256(msg.sender) >> 248) - 55) {
        _questionId = tokenId;
        0x149(MEM[64], 64);
        stor_1 = uint256(keccak256(spellHash));
        0x149(MEM[64], 52);
        v0 = 0x501(1);
        require(STORAGE[keccak256(msg.sender)] == v0); // require mapping(msg.sender) ==> TRUE, check if owner or deployer tmtc
    }
    return ;
}

function function_selector() public payable {
    revert();
}

function 0xa5(uint256 varg0, uint256 varg1) private {
    require(varg1 - varg0 >= 0);
    return ;
}

// Note: The function selector is not present in the original solidity code.
// However, we display it for the sake of completeness.

function function_selector( function_selector) public payable {
    MEM[64] = 128;
    if (msg.data.length >= 4) {
        if (function_selector >> 224 == 0x2b968958) {
            revokeOwnership();
        } else if (function_selector >> 224 == 0x2f484947) {
            0x2f484947();
        } else if (function_selector >> 224 == 0xb06a5c52) {
            questionId();
        } else if (function_selector >> 224 == 0xf5b938e2) {
            start(uint256,bytes32);
        }
    }
    ();
}

Analysis of Key Functions:

revokeOwnership: This function revokes ownership by setting the owner variable to a null address. This function is not crucial for solving the challenge.

function revokeOwnership() public nonPayable {

   // Check if msg.data.length == 4
   0xa5(4, msg.data.length);

   // Set the memory pointer
   0x149(MEM[64], 52);

   // Set v0 to 1
   v0 = 0x501(1);

   // Check if msg.sender is the Owner
   require(STORAGE[keccak256(msg.sender)] == v0);

   // Set the Ownership to false
   STORAGE[keccak256(msg.sender)] = 0;
   return ;
}

start: Sets two critical variables based on the input parameters. The function prepares the ground for the challenge-solving strategy.

function start(uint256 tokenId, bytes32 spellHash) public payable {

   // Check if msg.data.length is 1 selector (4 bytes) and 2 variables (2*32 bytes)
   require(msg.data.length - 4 >= 64);

   // ?? Decompilation error imo
   if ((keccak256(msg.sender) >> 248) - 55) {

      // Store tokenId in _questionId
      _questionId = tokenId;

      // Set fmp
      0x149(MEM[64], 64);

      // Store keccak256(spellHash) in stor_1
      stor_1 = uint256(keccak256(spellHash));

      // Set fmp
      0x149(MEM[64], 52);

      // CHeck if msg.sender is the owner
      v0 = 0x501(1);
      require(STORAGE[keccak256(msg.sender)] == v0); // require mapping(msg.sender) ==> TRUE

   }
   return ;
}

The Crux of the Challenge - answer Function:

The solution hinges on the answer function, which is inferred from the challenge’s interface.
The function requires an input that matches the spellHash set in the start function and an Ethereum transaction with a value greater than 1 ether.
When these conditions are met, the function transfers the entire balance of the target contract to the sender.

function 0x2f484947(bytes varg0) public payable {
   //require(msg.data.length - 4 >= 32);
   require(varg0 <= uint64.max);
   require(4 + varg0 + 31 < msg.data.length);
   //require(varg0.length <= uint64.max, Panic(65)); // failed memory allocation (too much memory)
   v0 = new bytes[](varg0.length);
   0x149(v0, (varg0.length + 31 & ~0x1f) + 32); // set fmp
   //require(varg0.data + varg0.length <= msg.data.length);
   CALLDATACOPY(v0.data, varg0.data, varg0.length); // put varg0 in memory
   //v0[varg0.length] = 0; //out of length, more like delimiting the array
   v1 = v0.length;
   v2 = v0.data;
   v3 = v4 = stor_1 == keccak256(v0); // == spelhash
   if (v4) {
      v3 = msg.value > 10 ** 18; //need > 1 ether
   }
   if (v3) {
      v5 = v6 = msg.sender;
      v7 = this;
      v8 = v9 = 0;
      if (!v7.balance) { // Decompilation error
            v8 = 2300;
      }
      v11 = v6.call().value(v7.balance).gas(v8); // here
      require(v11, MEM[64], RETURNDATASIZE()); //require success
      require(msg.sender.code.size == 0); // require msg.sender == not SC
   }
   return ;
}

The function primarily consists of four key sections

v0 = new bytes[](varg0.length);
   0x149(v0, (varg0.length + 31 & ~0x1f) + 32); // set fmp
   //require(varg0.data + varg0.length <= msg.data.length);
   CALLDATACOPY(v0.data, varg0.data, varg0.length); // put varg0 in memory

Store in v0 varg0, with varg0 the input of the function

v3 = v4 = stor_1 == keccak256(v0); // == spelhash

Check if v0 == stor_1, with stor_1 previously set in the start(uin256,bytes32) function

if (v4) {
      v3 = msg.value > 10 ** 18; //need > 1 ether
   }

Check if msg.value > 1 ether

v5 = v6 = msg.sender;
v7 = this;
...
v11 = v6.call().value(v7.balance).gas(v8); // here

Send all the contract balance to msg.sender

Solution Script#

A foundry script is provided for executing the solution. It involves:
- Setting up a connection with the Jambo interface.
- Preparing the correct input data that aligns with the spellHash.
- Sending a transaction with the required ether value to trigger the answer function and drain the target contract’s balance.
```
bytes memory data = hex"66757a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a6c616e64";

Jambo(address(chall.target())).answer{value : 1.1 ether}(data);
```
Link to the solution script:

// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.13;

import "forge-std/Script.sol";
import "forge-std/console.sol";

import "../src/Challenge.sol";

contract ExploitScript is Script {
    Challenge chall = Challenge(0xd120465D26e07971249e84acc33178747Bb6437B);
    function setUp() public {}

    function run() public {
        vm.startBroadcast();
        bytes memory data = hex"66757a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a7a6c616e64";
        Jambo(address(chall.target())).answer{value : 1.1 ether}(data);

        vm.stopBroadcast();
    }
}

MAZE#

YUL / 24 solves / 190 pts

Author: publicqi (@publicqi)

Background of the Challenge#

Tony made billions $ from rug pulling. He bought an island in Fiji, started to study philosophy, and devoted to learning labyrinth.

In this challenge, players aim to navigate out of a maze by manipulating a player’s position on a 2D grid, adjusting the x and y coordinates.

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.0;

contract Challenge {
    address public target;

    constructor() {
        // Using bytecode to deploy is just a way to workaround yul deployment in foundry
        // Source: Maze.yul
        bytes memory bytecode =
            hex"6afdfefefefefefefefefefe195f9081556afffffefffffffefffffffe196001556afefffefffefffefffefefe1960028181556afefffffffefffffffefffe196003556afefefefefefffefefefffe196004556afefffefffefffffffffffe196005556afefffefffefffefefefffe196006556afefffefffefffefffffffe196007556008919091556afefffffffffffefffffffc196009556afefefefefefefefefefefe19600a55600b829055600c829055600d829055600e556101b69081906100c990395ff3fe602036146101ac57338073f9a2c330a19e2fbfeb50fe7a7195b973bb0a3be91461018e5780732acf0d6fdac920081a446868b2f09a8dac7974481461019d578073872917cec8992487651ee633dba73bd3a9dca3091461018e5773802271c02f76701929e1ea772e72783d28e4b60f1461018057600e54801519610117575b505b600360ff600b54600c54600a82116100fe575b600a81116100e6575b5490600a03831b1c1660ff811460018214176100c2575b146100ba57005b6001600d5500005b4556454e204d4152494f2043414e4e4f542048495420544849532057414c4c6100b3565b5448495320495320412046414b4520464c414761009c565b4e4f204553434150452046524f4d204d415a4521610093565b5f19908101600e5536600114610173575b60023614610166575b5060033614610158575b6004361461014a575b5f61007e565b6001600b5401600b55610144565b6001600c5401600c5561013b565b600b5401600b555f610131565b80600c5401600c55610128565b6001600b5401600b55610080565b506001600c5401600c55610080565b505f19600b5401600b55610080565b600d545f5260205ff3";

        address addr;
        assembly {
            addr := create(0, add(bytecode, 0x20), mload(bytecode))
            if iszero(addr) { revert(0, 0) }
        }

        target = addr;
    }

    function isSolved() external returns (bool) {
        (, bytes memory ret) = target.call("00000000000000000000000000000000");
        bool solved;

        assembly {
            solved := mload(add(ret, 0x20))
        }

        return solved;
    }
}

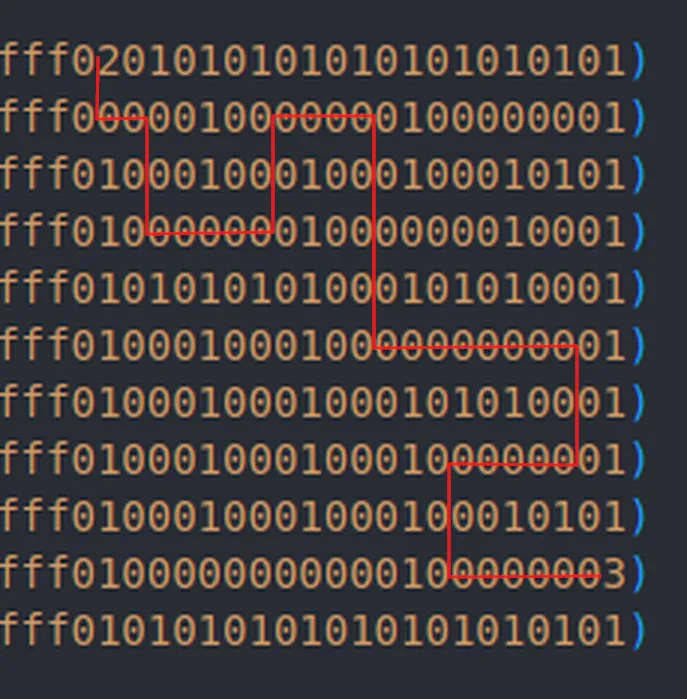

The Maze Explained#

The maze, crafted in Yul, can be explored here:

// solc --strict-assembly Maze.yul --bin --optimize
object "Maze" {
    // Four types of sprites:
    // 0x00 => Empty
    // 0x01 => Wall
    // 0x02 => Player
    // 0x03 => Exit
    // 0xff => Invalid
    code {
        sstore(0x0, 0xffffffffffffffffffffffffffffffffffffffffff0201010101010101010101)
        sstore(0x1, 0xffffffffffffffffffffffffffffffffffffffffff0000010000000100000001)
        sstore(0x2, 0xffffffffffffffffffffffffffffffffffffffffff0100010001000100010101)
        sstore(0x3, 0xffffffffffffffffffffffffffffffffffffffffff0100000001000000010001)
        sstore(0x4, 0xffffffffffffffffffffffffffffffffffffffffff0101010101000101010001)
        sstore(0x5, 0xffffffffffffffffffffffffffffffffffffffffff0100010001000000000001)
        sstore(0x6, 0xffffffffffffffffffffffffffffffffffffffffff0100010001000101010001)
        sstore(0x7, 0xffffffffffffffffffffffffffffffffffffffffff0100010001000100000001)
        sstore(0x8, 0xffffffffffffffffffffffffffffffffffffffffff0100010001000100010101)
        sstore(0x9, 0xffffffffffffffffffffffffffffffffffffffffff0100000000000100000003)
        sstore(0xa, 0xffffffffffffffffffffffffffffffffffffffffff0101010101010101010101)

        sstore(0xb, 0x0)
        sstore(0xc, 0x0)
        sstore(0xd, 0x0)
        sstore(0xe, 0x2)

        codecopy(0, dataoffset("Maze_Runtime"), datasize("Maze_Runtime"))
        return (0, datasize("Maze_Runtime"))
    }

    object "Maze_Runtime" {
        code {
            // return isSolved
            if eq(calldatasize(), 0x20) {
                mstore(0x0, sload(0xd))
                return (0, 0x20)
            }

            // Game starts here
            let msg_sdr := caller()

            switch msg_sdr
            // 0x46
            case 0xF9A2C330a19e2FbFeB50fe7a7195b973bB0A3BE9 { // -y
                verbatim_0i_0o(hex"6001600c5403600c55")
            }
            // 0x75
            case 0x2ACf0D6fdaC920081A446868B2f09A8dAc797448 { // -x
                sstore(0xb, sub(sload(0xb), 1))
            }
            // 0x7a
            case 0x872917cEC8992487651Ee633DBA73bd3A9dcA309 { // +y
                verbatim_0i_0o(hex"6001600c5401600c55")
            }
            // 0x5a
            case 0x802271c02F76701929E1ea772e72783D28e4b60f { // +x
                sstore(0xb, add(sload(0xb), 1))
            }

            // can do it by using the calldata length too
            default {
                if not(iszero(sload(0xe))) {
                    sstore(0xe, sub(sload(0xe), 1))
                    let calldatalen := calldatasize()
                    if eq(calldatalen, 0x1) {
                        sstore(0xc, sub(sload(0xc), 1)) // - y
                    }
                    if eq(calldatalen, 0x2) {
                        sstore(0xb, sub(sload(0xb), 1)) // - x
                    }
                    if eq(calldatalen, 0x3) {
                        sstore(0xc, add(sload(0xc), 1)) // + y
                    }
                    if eq(calldatalen, 0x4) {
                        sstore(0xb, add(sload(0xb), 1)) // + x
                    }
                }
            }

            let pos_x := sload(0xb)
            let pos_y := sload(0xc)

            // check if player still in the maze
                            if gt(pos_x, 10) {
                                verbatim_0i_0o(hex"4e4f204553434150452046524f4d204d415a4521")
                            }

                            if gt(pos_y, 10) {
                                verbatim_0i_0o(hex"5448495320495320412046414b4520464c4147")
                            }


            let pos := getPos(pos_x, pos_y)


            // if player outside or on wall ==> dead
                            if or(eq(pos, 0x1), eq(pos, 0xff)) {
                                verbatim_0i_0o(hex"4556454e204d4152494f2043414e4e4f542048495420544849532057414c4c")
                            }

            if eq(pos, 0x3) {
                verbatim_0i_0o(hex"6001600d5500")
            }

            // Function restructured to logically align x and y
            function getPos(x, y) -> type_ {
                type_ := and(shr(mul(8, sub(10, x)), sload(y)), 0xff)
            }

            // Original source function
            /* function getPos(y, x) -> type_ {
                type_ := and(shr(mul(8, sub(10, y)), sload(x)), 0xff)
            } */
        }
    }
}

Let’s break down the key parts of the challenge:

Maze Initialization and Layout#

The contract sets up the maze using Ethereum’s storage (sstore). Each cell in the grid is denoted by a byte, representing various elements like empty space, walls, the player, the exit, and invalid areas.
The maze is laid out across several storage slots (0x0 to 0xa), where each slot contains a row of the maze.
Additional slots (0xb to 0xe) track the player’s coordinates and other game aspects.

  // Sprite Types:
    // 0x00 => Empty
    // 0x01 => Wall
    // 0x02 => Player
    // 0x03 => Exit
    // 0xff => Invalid
    code {
        // [Maze initialization code is omitted for brevity]
    }

Maze_Runtime: The Game Logic#

This section of the code governs the game’s operation when the contract is called.

Game Completion Check:

If calldatasize() equals 0x20, the contract reveals whether the game has been solved by returning the value in slot 0xd.

    // return isSolved
    if eq(calldatasize(), 0x20) {
        mstore(0x0, sload(0xd))
        return (0, 0x20)
    }

Player Movement Mechanics:

The player’s movement is determined by the caller address or the size of the call data (calldatasize()).
Specific Ethereum addresses correspond to movement directions (e.g., -x, +y).
Private keys for these addresses are accessible on privatekeyfinder.io.
The switch statement updates the player’s position based on these inputs.
The verbatim instruction def : The set of verbatim… builtin functions lets you create bytecode for opcodes that are not known to the Yul compiler. It also allows you to create bytecode sequences that will not be modified by the optimizer.

    // Game starts here
    let msg_sdr := caller()
    switch msg_sdr
    // 0x46
    case 0xF9A2C330a19e2FbFeB50fe7a7195b973bB0A3BE9 { // -y
        verbatim_0i_0o(hex"6001600c5403600c55")
    }
    // 0x75
    case 0x2ACf0D6fdaC920081A446868B2f09A8dAc797448 { // -x
        sstore(0xb, sub(sload(0xb), 1))
    }
    // 0x7a
    case 0x872917cEC8992487651Ee633DBA73bd3A9dcA309 { // +y
        verbatim_0i_0o(hex"6001600c5401600c55")
    }
    // 0x5a
    case 0x802271c02F76701929E1ea772e72783D28e4b60f { // +x
        sstore(0xb, add(sload(0xb), 1))
    }
    // can do it by using the calldata length too
    default {
        if not(iszero(sload(0xe))) {
            sstore(0xe, sub(sload(0xe), 1))
            let calldatalen := calldatasize()
            if eq(calldatalen, 0x1) {
                sstore(0xc, sub(sload(0xc), 1)) // - y
            }
            if eq(calldatalen, 0x2) {
                sstore(0xb, sub(sload(0xb), 1)) // - x
            }
            if eq(calldatalen, 0x3) {
                sstore(0xc, add(sload(0xc), 1)) // + y
            }
            if eq(calldatalen, 0x4) {
                sstore(0xb, add(sload(0xb), 1)) // + x
            }
        }
    }

Position Determination:
The getPos function in the Yul code calculates the sprite type at a given (x, y) coordinate in the maze. It works as follows:
1. Adjusts the x-coordinate by calculating 10 - x and multiplies the result by 8. This step finds the bit position of the sprite in the storage slot, considering each sprite occupies 8 bits (1 byte).
2. Retrieves the y-coordinate storage slot using sload(y), which loads the data stored at the y-coordinate.
3. Shifts the bits to the right by the calculated bit position using shr. This isolates the 8-bit sprite data for the given x-coordinate.
4. Extracts the sprite type using a bitwise AND with 0xff to keep only the last 8 bits. This represents the sprite type (e.g., empty, wall, player) at the (x, y) location.
```
     // Function restructured to logically align x and y
     function getPos(x, y) -> type_ {
         type_ := and(shr(mul(8, sub(10, x)), sload(y)), 0xff)
     }
```

Gameplay Dynamics:

The contract ensures the player remains within the maze’s confines.
Hitting a wall or an invalid space results in a game over.
Reaching the exit (sprite type 0x3) signifies the game is solved.

     let pos_x := sload(0xb)
     let pos_y := sload(0xc)

     // check if player still in the maze
         if gt(pos_x, 10) {
             verbatim_0i_0o(hex"4e4f204553434150452046524f4d204d415a4521")
         }

         if gt(pos_y, 10) {
             verbatim_0i_0o(hex"5448495320495320412046414b4520464c4147")
         }

         let pos := getPos(pos_x, pos_y)

     // if player outside or on wall ==> dead
         if or(eq(pos, 0x1), eq(pos, 0xff)) {
             verbatim_0i_0o(hex"4556454e204d4152494f2043414e4e4f542048495420544849532057414c4c")
         }

     if eq(pos, 0x3) {
         verbatim_0i_0o(hex"6001600d5500")
     }

Solving the Challenge#

The initial step involves mapping a path through the maze. The chosen path for this write-up involves a series of movements altering x and y coordinates. Here’s an illustration:

Maze Path Visualization

Given the starting position at [0,0], the y-axis is inverted, and the x-axis behaves typically. The path :

- +y
- +x
- +y * 2
- +x * 2
- -y * 2
- +x * 2
- +y * 4
- +x * 4
- +y * 2
- -x * 2
- +x * 3

Example transaction to trigger +y movement:

// Setting PrivateKey and PublicKey
uint256 py = uint8(bytes1(0x7a));
address PY_addr = vm.addr(py);

// Label the addr to debug efficiently in the foundry stacktrace
vm.label(PY_addr, "PY");

// Signe the next transaction with the PrivateKey given
vm.broadcast(py);
maze.call("");

Upon executing the script repeatedly to create a series of transactions, the script unexpectedly fails.

During the debugging process, it becomes apparent that the actions for - y and + y have identical results. This anomaly is linked to a known issue described in Solidity’s documentation, where the optimizer mistakenly perceives both blocks of code as identical and merges them.

Initially, during the CTF, I wasn’t aware of this optimizer issue and instead explored an alternative approach for adjusting the player’s position using the default case in the switch statement.

This is why this particular path was selected because the default mode can be accessed only twice, as it decrements the value in storage slot 0xe (initialized with 0x02) each time it’s entered.

// Player movement can also be controlled using calldata length
default {
    if not(iszero(sload(0xe))) {
        sstore(0xe, sub(sload(0xe), 1))
        let calldatalen := calldatasize()
        if eq(calldatalen, 0x1) {
            sstore(0xc, sub(sload(0xc), 1)) // - y
        }
        if eq(calldatalen, 0x2) {
            sstore(0xb, sub(sload(0xb), 1)) // - x
        }
        if eq(calldatalen, 0x3) {
            sstore(0xc, add(sload(0xc), 1)) // + y
        }
        if eq(calldatalen, 0x4) {
            sstore(0xb, add(sload(0xb), 1)) // + x
        }
    }
}

For the specific instances where the y value needs to be decreased, transactions are signed using the player’s private key and include a single byte of calldata, as demonstrated below:

vm.broadcast(player);
maze.call(hex"ff");
vm.broadcast(player);
maze.call(hex"ff");

Solution Script and Acknowledgments#

Access the solution script here:

// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.13;

import "forge-std/Script.sol";
import "forge-std/console.sol";

import "../src/Challenge.sol";

contract ExploitScript is Script {

    Challenge chall;
    address  maze;

    uint256 my = uint8(bytes1(0x46));
    uint256 py = uint8(bytes1(0x7a));
    uint256 mx = uint8(bytes1(0x75));
    uint256 px = uint8(bytes1(0x5a));

    uint256 player = uint256(bytes32(0xf811da4ab3a0626af81f01b7c342baefd284a3690b1f6a035348ec78ffd7c58e));

    address MY_addr = vm.addr(my);
    address PY_addr = vm.addr(py);
    address MX_addr = vm.addr(mx);
    address PX_addr = vm.addr(px);

    function setUp() public {
        /* console.log(MY_addr);
        console.log(MX_addr);
        console.log(PY_addr);
        console.log(PX_addr); */

        vm.startBroadcast(player);
        MY_addr.call{value : 1 ether}("");
        PY_addr.call{value : 1 ether}("");
        MX_addr.call{value : 1 ether}("");
        PX_addr.call{value : 1 ether}("");
        assert(MY_addr.balance > 0);
        assert(PY_addr.balance > 0);
        assert(MX_addr.balance > 0);
        assert(PX_addr.balance > 0);
        vm.stopBroadcast();

        vm.label(MY_addr, "MY");
        vm.label(PY_addr, "PY");
        vm.label(MX_addr, "MX");
        vm.label(PX_addr, "PX");

        //vm.label(player, "PLAYER");

        chall = Challenge(0x23aaAe256BA3d548D8C0E1E53f0F7d8b1bb60742);




    }

    function run() public {
        maze = chall.target();
        vm.label(maze, "MAZE");

        print();

        vm.broadcast(py);
        maze.call("");
        print();

        vm.broadcast(px);
        maze.call("");
        print();


        vm.broadcast(py);
        maze.call("");
        print();
        vm.broadcast(py);
        maze.call("");
        print();

        vm.broadcast(px);
        maze.call("");
        print();
        vm.broadcast(px);
        maze.call("");
        print();

        vm.broadcast(player);
        maze.call(hex"ff");
        print();
        vm.broadcast(player);
        maze.call(hex"ff");
        print();

        vm.broadcast(px);
        maze.call("");
        print();
        vm.broadcast(px);
        maze.call("");
        print();

        vm.broadcast(py);
        maze.call("");
        vm.broadcast(py);
        maze.call("");
        vm.broadcast(py);
        maze.call("");
        vm.broadcast(py);
        maze.call("");


        vm.broadcast(px);
        maze.call("");
        print();
        vm.broadcast(px);
        maze.call("");
        print();
        vm.broadcast(px);
        maze.call("");
        print();
        vm.broadcast(px);
        maze.call("");
        print();

        vm.broadcast(py);
        maze.call("");
        vm.broadcast(py);
        maze.call("");
        print();

        vm.broadcast(mx);
        maze.call("");
        vm.broadcast(mx);
        maze.call("");


        vm.broadcast(py);
        maze.call("");
        vm.broadcast(py);
        maze.call("");


        vm.broadcast(px);
        maze.call("");
        vm.broadcast(px);
        maze.call("");
        vm.broadcast(px);
        maze.call("");

        chall.isSolved();
    }

    function print() public{
        bytes32 leet = vm.load(maze, bytes32(uint256(uint8(bytes1(0x0b)))));
        console.log("x: ",uint256(leet));

        leet = vm.load(maze, bytes32(uint256(uint8(bytes1(0x0c)))));
        console.log("y: ", uint256(leet));

        leet = vm.load(maze, bytes32(uint256(uint8(bytes1(0x0e)))));
        console.log("e: ", uint256(leet));

        console.log("-------------");
    }
}

Ghost#

Creator: Robert Chen (OtterSec) @notdeghost

Categories: EVM, Reverse Engineering / 13 Solves / 274 Points

Rather than duplicating efforts, I recommend checking out the excellent writeup by betrisey for this challenge. It’s a great read and will provide valuable insights. Enjoy! :)

https://gist.github.com/betrisey/e13dd30bc1f723d7a6c9bfdf7b0300d8

Thanks

Feel free to pose your questions here: https://twitter.com/0x_m4k2
